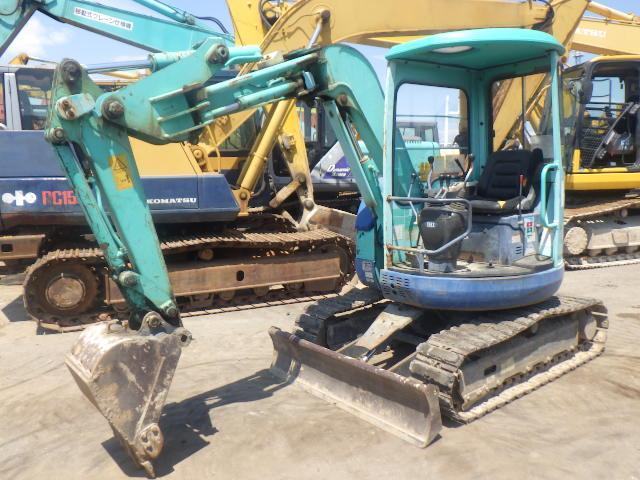

Giới thiệu về máy xúc đào Máy xúc IHI 30Z, Máy xúc IHI 30NX . Đây là dòng máy xúc mini phổ biến ở mức giá dưới 300 triệu. Giá máy tầm từ 100-270 triệu trên thị trường và được sử dụng rộng rãi ở miền bắc
Video giới thiệu:
Thông số chung Dimensions
Boom/Stick Option (HEX) 1
A
Shipping Length of Unit
14.33 ft in
C
Shipping Height of Unit
8.17 ft in
I
Max Cutting Height
14.17 ft in
J
Max Loading Height
10 ft in
L
Max Vertical Wall Digging Depth
8.42 ft in
M
Max Digging Depth
10.5 ft in
Dimensions
B
Width to Outside of Tracks
5.08 ft in
G
Height to Top of Cab
8.17 ft in
H
Tail Swing Radius
2.58 ft in
Undercarriage
F
Track Gauge
4.08 ft in
N
Shoe Size
12 in
Specifications
Engine
Engine Make
2348
Engine Model
3TNV84
Gross Power
23.9 hp
Operational
Operating Weight
7075 lb
Fuel Capacity
10.6 gal
Hydraulic System Relief Valve Pressure
3133 psi
Hydraulic Pump Flow Capacity
23.2 gal/min
Swing Mechanism
Swing Speed
9.2 rpm
Undercarriage
Shoe Size
12 in
Ground Pressure
4.6 psi
Max Travel Speed
3.1 mph
Track Gauge
4.1 ft in
Buckets
Reference Bucket Capacity
0.2 yd3
Boom/Stick Option (HEX) 1
Shipping Height of Unit
8.2 ft in
Shipping Length of Unit
14.4 ft in
Max Digging Depth
10.5 ft in
Max Cutting Height
14.2 ft in
Max Loading Height
10 ft in
Max Vertical Wall Digging Depth
8.5 ft in
Dimensions
Width to Outside of Tracks
5.1 ft in
Height to Top of Cab
8.2 ft in
Removal Counterweight Clearance
1.9 ft in
Tail Swing Radius
2.6 ft in
